# canvas

<span style="color: #777;">an intro to web graphics with html5</span>

Kai Chang<br/>
<a href="//bl.ocks.org/syntagmatic">bl.ocks.org/syntagmatic</a><br/>

---

## <a href="//bl.ocks.org/syntagmatic/3736720/">Julia Set</a>

---

---

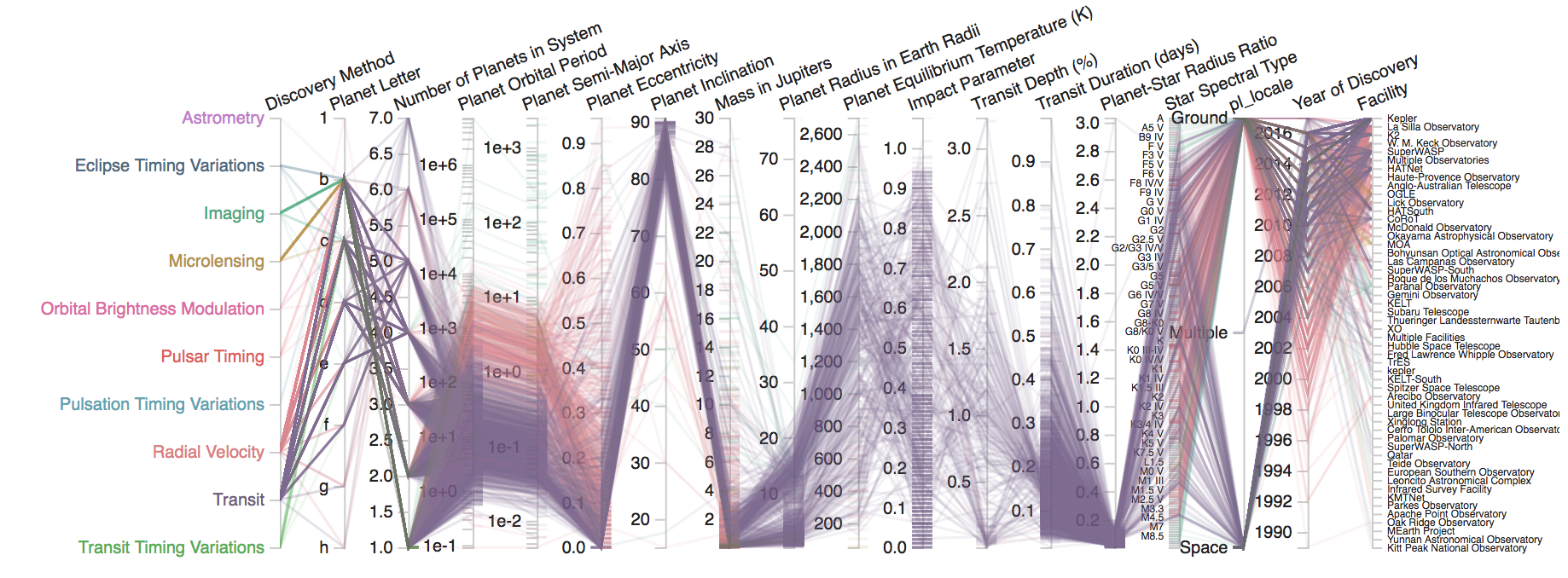

## Exoplanets

Extrasolar planets, their discovery method and characteristics in parallel coordinates.

Data from the NASA Exoplanet Archive.

---

---

---

<blockquote>The electric light is pure information.<br/>It is a medium without a message, as it were, unless it is used to spell out some verbal ad or name.
</blockquote>
Marshall McLuhan

---

---

<a href="//open.lib.umn.edu/intropsyc/">open.lib.umn.edu/intropsyc</a>

---

<blockquote>The canvas is the door to another dimension.<br/>The paintbrush is the key.
</blockquote>
Luhraw

---

<blockquote>The <span style="color: #00E218;">HTML5</span> canvas is the door to another dimension.<br/><span style="text-decoration: line-through; color: #888;">The paintbrush</span> <span style="color: #00E218;">Javascript</span> is the key.
</blockquote>
Kai

---

## Canvas

* Used for drawing graphics in the browser
* Pixel-based (bitmap of rgba image data)
* Procedural, immediate Mode
* This talk is about the 2D Context
* There is also a 3D WebGL Context

## JavaScript

* Call methods on the Canvas context
* Load, parse, draw data
* Data structures: Arrays, Objects, Strings, Numbers
* Functions for data transformation, drawing subroutines

## Applications

* Generative art

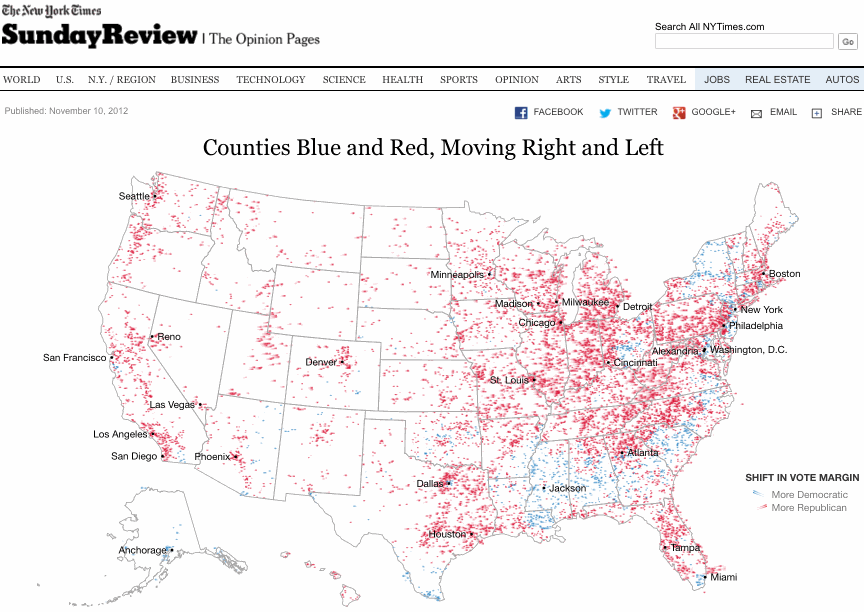

* Data visualization
* Web-based games
* Drawing and image editing apps

---

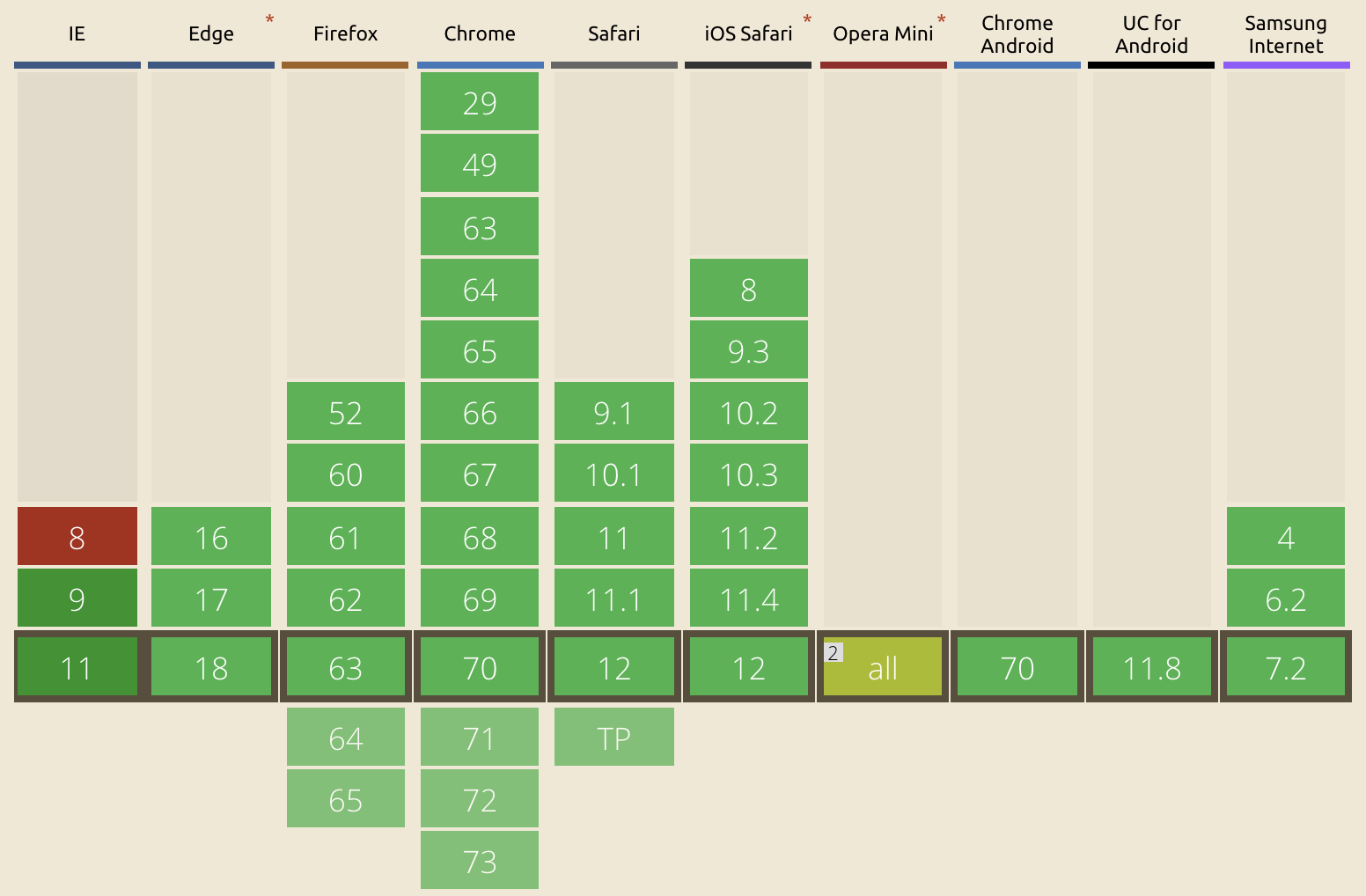

## Can I use?

---

```html
<canvas id='painting' width=960 height=500></canvas>
```

And a canvas context to render to:

```html
<script type='text/javascript'>

var canvas = document.getElementById('painting')
  var context = canvas.getContext('2d')

// draw on pixels here

</script>
```
]

---

Rect arguments:

* x
* y
* width
* height
]
.right-column[
```html
<script type='text/javascript'>

var canvas = document.getElementById('painting')
  var context = canvas.getContext('2d')

context.fillStyle = "mediumseagreen"
  context.fillRect(500,20,200,600)

context.fillStyle = "darkorchid"
  context.fillRect(200,200,600,60)

context.fillStyle = "deepskyblue"
  context.fillRect(400,180,60,300)

</script>
```
]

---

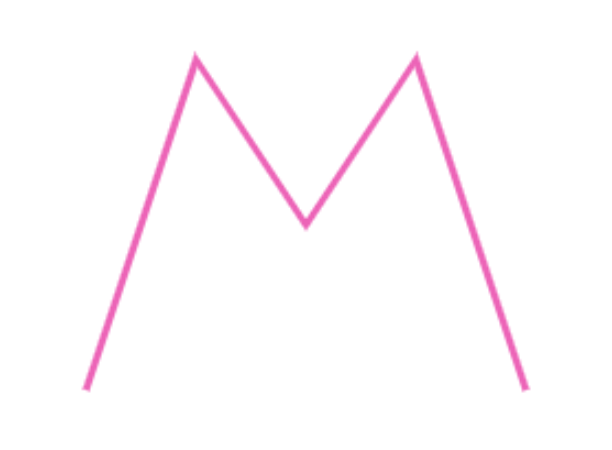

Move a cursor around with moveTo and lineTo
]
.right-column[
```javascript
context.strokeStyle = "#f5b"
context.lineWidth = 3

context.beginPath()
context.moveTo(150,250)
context.lineTo(200,100)
context.lineTo(250,175)
context.lineTo(300,100)
context.lineTo(350,250)
context.stroke()
```

<img src="lines.png" width=200 />
]

---

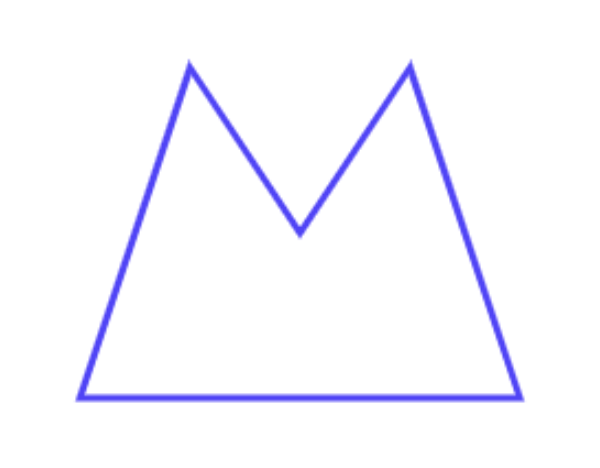

Close shapes with closePath()
]
.right-column[
```javascript
context.strokeStyle = "#5738FF"
context.lineWidth = 3

context.beginPath()
context.moveTo(150,250)
context.lineTo(200,100)
context.lineTo(250,175)
context.lineTo(300,100)
context.lineTo(350,250)
context.closePath()
context.stroke()
```

<img src="lines-closed.png" width=200 />
]
---

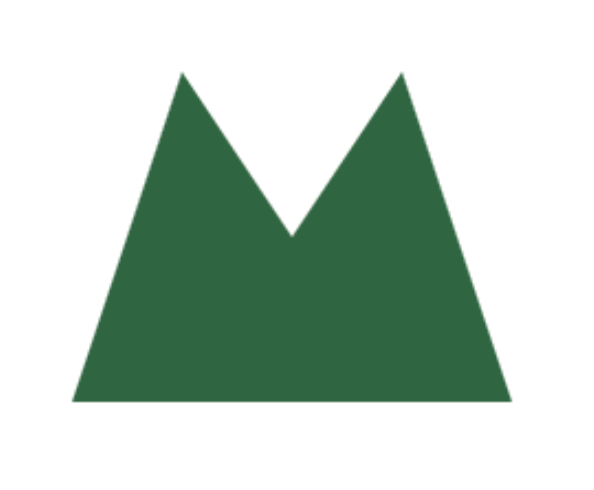

The same as lines, just using fill instead of stroke
]
.right-column[
```javascript
context.fillStyle = "#15673D"

context.beginPath()
context.moveTo(150,250)
context.lineTo(200,100)
context.lineTo(250,175)
context.lineTo(300,100)
context.lineTo(350,250)
context.closePath()
context.fill()
```

<img src="lines-filled.png" width=200 />
]

---

Arc arguments:

* x
* y
* r
* start angle
* end angle
]
.right-column[
```javascript
context.fillStyle = "crimson"
context.beginPath()
context.arc(800,250,450,0,2*Math.PI)
context.fill()

context.fillStyle = "steelblue"
context.beginPath()
context.arc(50,250,50,0,2*Math.PI)
context.fill()

```
]

---

.left-column[
## Creating words
]
.right-column[
```javascript
function circle(x,y,radius,color) {
  context.fillStyle = color
  context.beginPath()
  context.arc(x,y,radius,0,2*Math.PI)
  context.fill()
}
```
]

---

Filling circles (again)
]
.right-column[
```javascript
circle(800,250,450,"crimson")
circle(800,250,450,"steelblue")

function circle(x,y,radius,color) {
  context.fillStyle = color
  context.beginPath()
  context.arc(x,y,radius,0,2*Math.PI)
  context.fill()
}
```
]

---

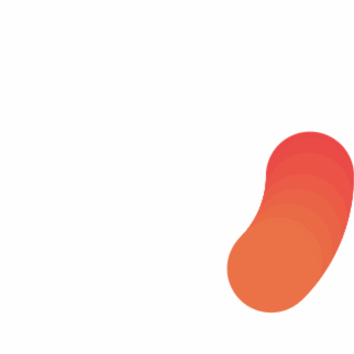

<img src="canvas-animation.gif" width=140 />
]
.right-column[
```html
<script src="https://d3js.org/d3.v4.js"></script>
<script>

d3.timer(function() {
  // redraw all the things!
})

</script>
```
]

---

<img src="canvas-animation.gif" width=140 />
]
.right-column[
```javascript
var canvas = document.getElementById('painting')
var context = canvas.getContext('2d')

// center the animation
context.translate(canvas.width/2, canvas.height/2)

d3.timer(function(t) {
  var x = Math.cos(t/2000*Math.PI) * 120
  var y = Math.sin(t/2000*Math.PI) * 120
  var color = "hsl(" + (Math.floor(t/30)%360) + ",80%,60%)"

circle(x,y,40,color)
})

function circle(x,y,radius,color) {
  context.fillStyle = color
  context.beginPath()
  context.arc(x,y,radius,0,2*Math.PI)
  context.fill()
}

```
]

---

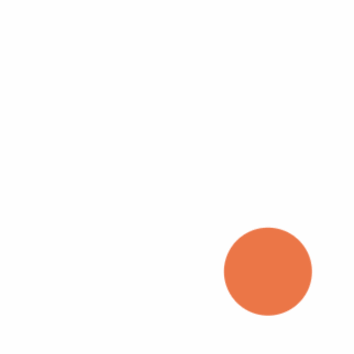

Use clearRect to erase previously drawn areas of the canvas

<img src="canvas-animation-2.gif" width=140 />
]
.right-column[
```javascript
var canvas = document.getElementById('painting')
var context = canvas.getContext('2d')

// center the animation
context.translate(canvas.width/2, canvas.height/2)

d3.timer(function(t) {
  context.clearRect(-canvas.width/2,
                    -canvas.height/2,
                     canvas.width,
                     canvas.height)

var x = Math.cos(t/2000*Math.PI) * 120
  var y = Math.sin(t/2000*Math.PI) * 120
  var color = "hsl(" + (Math.floor(t/30)%360) + ",80%,60%)"

circle(x,y,40,color)
})

function circle(x,y,radius,color) {
  context.fillStyle = color
  context.beginPath()
  context.arc(x,y,radius,0,2*Math.PI)
  context.fill()
}

```
]
---

Clearing the canvas by filling a transparent rect can be used to create a whimsical trail effect
]
.right-column[
```javascript
d3.timer(function() {
  context.fillStyle = 'rgba(255,255,255,0.3)'
  context.fillRect(0, 0, canvas.width, canvas.height)

// redraw all the things!
})
```
]

---

And torus wrapping!
]
.right-column[
<a href="trails.html"><img src="trails.gif" width=360 /></a>
<a href="trails-neon.html"><img src="trails-neon.gif" width=360 /></a>

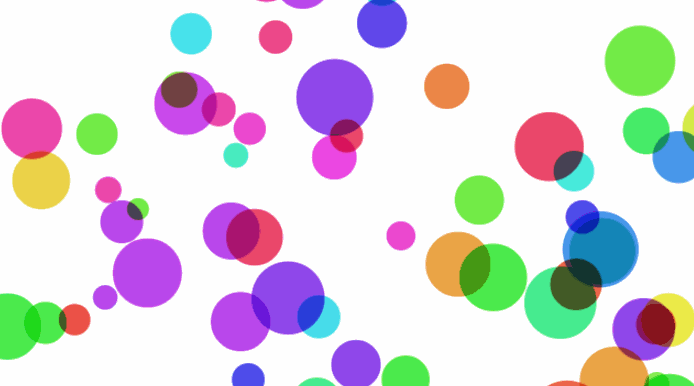

<a href="compositing.html"><img src="bubbles.gif" width=360 /></a>

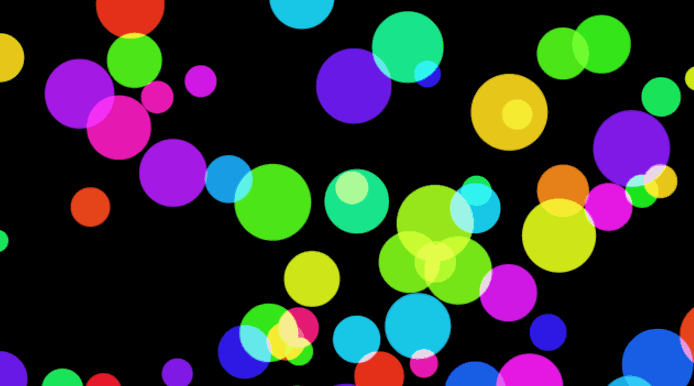

<a href="compositing-2.html"><img src="bubbles-dark.gif" width=360 /></a>
]

---

<div style="height:17px"> </div>
Set up the canvas
<div style="height:36px"> </div>
Make some data
<div style="height:15px"> </div>
Color pink
<div style="height:15px"> </div>

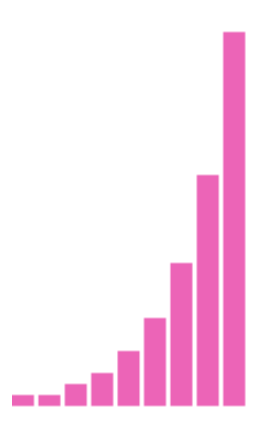

Draw the bars
<div style="height:38px"> </div>
These "magic numbers" shape and scale the chart

]
.right-column[
```html
<canvas id='painting' width=100 height=500></canvas>

var canvas = document.getElementById('painting')
var context = canvas.getContext('2d')

var data = [1, 1, 2, 3, 5, 8, 13, 21, 34]

context.fillStyle = "#f5b"

data.forEach(drawBar)

function drawBar(d,i) {
  var x = 10*i
  var y = 190
  var width = 8
  var height = -5*d
  context.fillRect(x,y,width,height)
}
</script>
```
]

---
class: center

Changes the way colors combine when overlapping shapes are rendered.
]
.right-column[

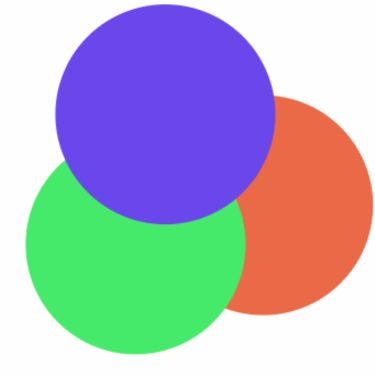

<img src="source-over.gif" width=130/>
```javascript
  context.globalCompositeOperation = "source-over"  // default
```

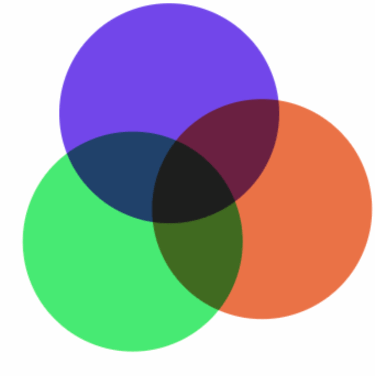

<img src="multiply.gif" width=130/>
```javascript
  context.globalCompositeOperation = "multiply"
```

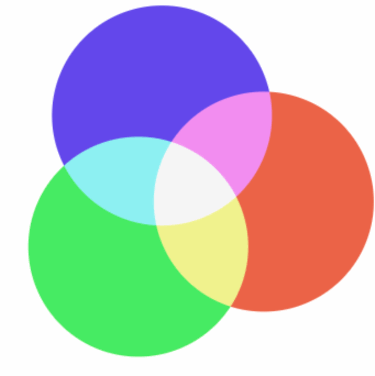

<img src="screen.gif" width=130/>
```javascript
  context.globalCompositeOperation = "screen"
```
]

---

class: bottom
background-image: url(infant-mortality.png)
background-size: contain

<a href="//bl.ocks.org/syntagmatic/623a3221d3e694f85967d83082fd4a77">SVG version</a> ·
<a href="//bl.ocks.org/syntagmatic/cb9a7441f79908c630207383b194a701">Canvas version</a>

---

## Mapmaking

```javascript
var projection = d3.geoAlbersUsa()

var path = d3.geoPath()
	.projection(projection)
	.context(context)

var color = d3.scaleThreshold()
  .range(["#fde0dd", "#fcc5c0",
          "#fa9fb5", "#f768a1",
          "#dd3497", "#ae017e",
          "#7a0177","#49006a"])
  .domain([250, 500, 750, 1000, 1250, 1500, 1750, 2000])

context.strokeStyle = "#fff"
context.lineWidth = 0.3

countGeojson.forEach(function(d) {
	context.fillStyle = color(d["Crude Rate"])
	context.beginPath()
	path(d)
	context.fill()
	context.stroke()
})
```

---

# Science Satellites

```javascript
d3.timer(function(elapsed) {
  // run time at 151x speed
  var time = new Date(now.getTime() + 150*elapsed)

data.forEach(function(d) {
    plotSatellite(d, time)
  })
})

function plotSatellite(d, time) {
  var position = satellite.propagate(sat, time).position
  var groundPosition = satellite.geodetic(position, time)

drawSat(sat, groundPosition)
}

```

Note: this bit is pseudo-code.

<a href="https://bl.ocks.org/syntagmatic/e494e2c3d7c797e41e48838f005f731f">Click here for a live version</a>.

---

## Places to Learn More

<a href="https://www.w3schools.com/html/html5_canvas.asp">w3Schools Canvas Tutorial</a>

<a href="https://developer.mozilla.org/en-US/docs/Web/API/Canvas_API">MDN Canvas API</a>

<a href="https://flaviocopes.com/canvas/">The HTML5 Canvas Guide</a>

<a href="https://joshondesign.com/p/books/canvasdeepdive/toc.html">Josh on Design Canvas Deep Dive</a>

<a href="https://www.visualcinnamon.com/2015/11/learnings-from-a-d3-js-addict-on-starting-with-canvas.html">Learnings from a d3.js addict starting with canvas</a>

---

## Thank you Øredev

Now go draw some rects!
